Caterpillar Adds 297D, 297D XHP Multi Terrain Loaders to Lineup

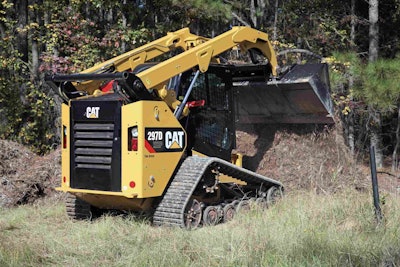

Cat 297D XHPCat 297D XHP

Two multi terrain loaders will begin rolling off Caterpillar’s assembly line soon.

The Cat 297D and 297D XHP Multi Terrain Loaders feature a dual suspension undercarriage, new modular cab, redesigned vertical lift loader linkage with Cat Intelligent Leveling, larger engines and enhanced performance compared with C Series models.

The machines include electronic controls and the Advanced Display, as well as a rearview camera.

Rated operating capacities (50 percent of tipping load) are 4,550 and 5,000 pounds, respectively.

The Cat C3.8 DIT engine develops respective net ratings of 95 and 106 horsepower (71 and 79 kW) and meets US EPA Tier 4 Interim and EU Stage IIIB emission standards.

Compared to the C Series, the 297D has increases in horsepower of 4 percent, torque rise of 13 percent and lift force of 19 percent.

The 297D XHP features increases in horsepower of 17 percent, peak torque of 27 percent, lift force of 19 percent and rated operating capacity of 10 percent.

The 297D XHP also includes an auxiliary hydraulic system featuring a relief pressure of 4,061 psi and outputs to 40 gpm, resulting in a 95 hydraulic horsepower, which is 22 percent more than the 297C.

The D series cab is sealed, pressurized and independent of the chassis. The cab is available with a high back, heat and air ride seat with seat-mounted adjustable joystick controls. The heating and cooling rates are increased by 50 percent, along with 20 percent more airflow and a 50 percent boost in pressurization.

The Advanced Display, which is available for the 297D and standard for the 297D XHP, integrates a security system that can accommodate up to 50 operators and uses a full color, 5-inch LCD that enables on-screen adjustment of implement response, hydrostatic drive response, and creep control speed. The system also expands diagnostic capability and allows master code holders to review operator specific machine performance.

The Cat Intelligent Leveling system allows three features: electronic dual self-leveling (automatically levels the load both raising and lowering); return-to-dig (automatically lowers lift arms and returns work tools to a preset angle); and work-tool-positioning (automatically returns attachments—cold planer or trencher, for example—to a preset angle after repositioning the machine).

The dial-type throttle in the D Series cab is paired with a foot throttle, so the pedal functions as a decelerator (when the dial in the high idle position. A throttle-smoothing feature electronically “clips” the extremes of throttle pedal movement in rough terrain to yield steady.

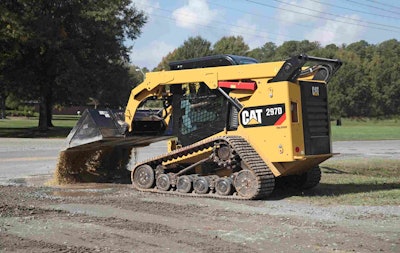

Cat 297D MTLCat 297D MTL

The undercarriage for the 297D and 297D XHP uses a rubber track, which is lightweight, pliable and reinforced with high tensile strength cords. Multiple wheels distribute the machine weight over the track, and an elevated roller sprocket ensures positive track drive.

The Multi Terrain Loader dual-level suspension system uses torsion axles to attach the undercarriage to the tractor and to attach the oscillating bogie wheel frames. Additionally, there is the shock-absorbing capability of the torsion axles and the oscillating bogie wheels.

A cooling system design uses a hydraulically driven fan to draw air from the rear of the machine and through the side-by-side radiator and hydraulic oil cooler at the top of the engine compartment.

In addition, the system draws cool air from the engine compartment and mixes it with the exhaust stream to reduce temperatures at the stack outlet, and the stack is positioned to direct exiting exhaust into the fan blast to quickly dissipate heat.

Lift arms for D Series machines have been redesigned and now use one-piece tubular design that adds strength to the loader linkage and retains lift characteristics while resulting in a narrower profile.

The available automatic work tool coupler is now electrically actuated, replacing the previous hydraulically actuated coupler.

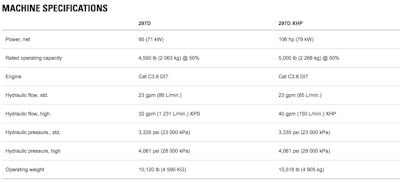

Screen Shot 2014 10 15 At 9 38 35 Am
