Case CE adds 3 new D Series 3-ton-class mini excavators to lineup

Case Construction Equipment continued the rollout of its D Series mini excavators at ConExpo 2026 with three new 3-ton-class models: the CX30D, CX34D and CX38D.

The 24.4-horsepower compact excavators provide zero tailswing, an automotive-style cab and attachment versatility.

Additional models in Case’s D Series lineup include the CX12D, CX19D, CX42D, CX50D and CX60D.

The zero-tailswing design allows operators to work close to walls, foundations, structures or hazards. Case says it also gave the excavators a “well-balanced undercarriage” for stability and steady operation. An optional six-way dozer blade is available for the CX38D for grading and backfilling.

An automotive-style cab features ergonomic pilot controls, an adjustable suspension seat and all-around visibility to the jobsite.

Each new model is equipped with different standard features to meet varying operational demands, Case says.

• The CX30D and CX38D include a lighting package, as well as a long arm with thumb bracket.
• The CX38D offers auxiliary hydraulic flow control and electronic throttle control with auto idle for smoother, more efficient operation.

Case Construction EquipmentThe mini excavators are compatible with a variety of attachments for digging, trenching, dirt moving, vegetation management and more. A pin-on bucket comes standard.

Operators can easily swap attachments with multifunction one- and two-way hydraulics and a second two-way auxiliary hydraulic circuit. An optional third hydraulic circuit and a constant-flow circuit enable the use of heavy-duty attachments, like mulchers.

Optional equipment includes an anti-theft system, attachment quick couplers, an additional bolt-on counterweight, automatic centralized lubrication, rearview mirrors.

Case CE offers a 2-year/3,000-hour full machine limited warranty. MyCaseConstruction Telematics hardware comes standard and includes a 7-year data subscription.

To see all of the products and technologies unveiled at ConExpo 2026, check out our show coverage page here.

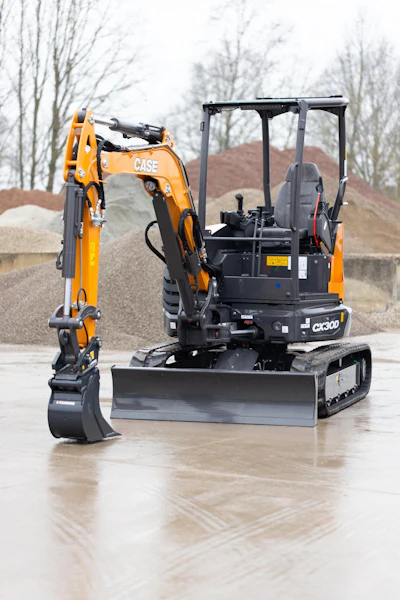

Case CE CX30D Mini Excavator Specs

• Engine: Kubota D1703-M
• Net Horsepower: 24.4 hp
• Travel Speed: 1.7 mph (1^st) / 2.7 mph (2^nd)
• Operating Weight: 6,658 lbs (Canopy) / 7,143 lbs (Cab)
• Maximum Dig Radius: 15 ft. 5 in. (Standard) / 16 ft. 1 in. (Long)
• Maximum Dig Depth: 8 ft. 8 in. (Standard) / 9 ft. 3 in. (Long)
• Dump Height: 10 ft. 2 in. (Standard) / 10 ft. 8 in. (Long)
• Overall Reach Height: 13 ft. 11 in. (Standard) / 14 ft. 4 in. (Long)
• Arm Digging Force: 4,116 lbf (Standard) / 3,698 lbf (Long)
• Bucket Digging Force: 7,868 lbf (Standard and Long)

*Standard arm is 3 feet 11 inches. Long arm option is 4 feet 7 inches.

Case CE CX34D Mini Excavator Specs

• Engine: Kubota D1703-M
• Net Horsepower: 24.4 hp
• Travel Speed: 1.7 mph (1^st) / 2.7 mph (2^nd)
• Operating Weight: 7,385 lbs (Canopy) / 7,672 lbs (Cab)
• Maximum Dig Radius: 16 ft. 2 in. (Standard) / 16 ft. 10 in. (Long)
• Maximum Dig Depth: 9 ft. 5 in. (Standard) / 10 ft. 1 in. (Long)
• Dump Height: 10 ft. 2 in. (Standard) / 10 ft. 7 in. (Long)
• Overall Reach Height: 14 ft. 6 in. (Standard) / 14 ft. 11 in. (Long)
• Arm Digging Force: 3,936 lbf (Standard) / 3,552 lbf (Long)
• Bucket Digging Force: 6,800 lbf (Standard and Long)

*Standard arm is 3 feet 11 inches. Long arm option is 4 feet 7 inches.

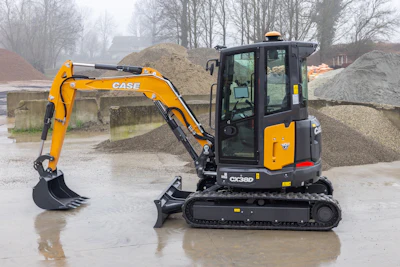

Case CE CX38D Mini Excavator Specs

• Engine: Kubota D1703-M
• Net Horsepower: 24.4 hp
• Travel Speed: 1.7 mph (1^st) / 2.7 mph (2^nd)
• Operating Weight: 8,333 (Canopy) / 8,620 lbs (Cab)
• Maximum Dig Radius: 16 ft. 10 in. (Standard) / 17 ft. 7 in. (Long)
• Maximum Dig Depth: 10 ft. 1 in. (Standard) / 10 ft. 11 in. (Long)
• Dump Height: 10 ft. 7 in. (Standard) / 11 ft. 1 in. (Long)
• Overall Reach Height: 14 ft. 11 in. (Standard) / 15 ft. 5 in. (Long)
• Arm Digging Force: 3,552 lbf (Standard) / 3,158 lbf (Long)
• Bucket Digging Force: 6,800 lbf (Standard and Long)

*Standard arm is 4 feet 7 inches. Long arm option is 5 feet 5 inches.
