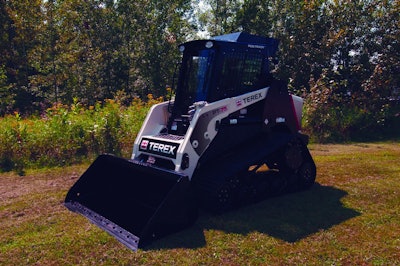

The Terex PT-75 compact track loader features a four-cylinder, turbocharged Perkins 804C-33T diesel engine, and is Tier 4-interim compliant.
The 71-horsepower machine has a width of 70 inches and includes 178.5 foot-pounds of peak torque, a tipping load of 6,200 pounds – with a 3,100-pound operating capacity at 50 percent tipping load capacity – and a lift height of 125 inches.
The loader comes with load-sensing, low-flow auxiliary hydraulics from 0-17.4 gal/min., high-flow auxiliary hydraulic capability of 30 gal/min at 3,000 psi. The machine also has an optional two-speed hydrostatic drive system that enables the operator to select low for maximum torque or high for faster travel speeds up to 10.5 mph.
The 18-inch wide tracks and Posi-Track undercarriage technology distributes the loader’s 8,972-pound operating weight down to 3.5 psi of ground pressure. The model also has optional 20-inch tracks.
The machine has front-mounted hydraulic fittings and an electronic connector for control of attachments.
