Ford introduced the Detroit Auto Show this week an all-new F-150 Raptor, reengineered to make it the toughest, smartest, most capable off-roader – and more efficient yet.
“When we created the first Raptor, we set out to prove vehicle performance isn’t just measured on the street or at the track – off-road can be even more fun,” says Raj Nair, Ford group vice president, Global Product Development. “The original Raptor, plus enhancements on the all-new F-150 set the bar for us to make the all-new Raptor better in every way.”
The all-new Raptor starts with a purpose-built frame that is the strongest in the F-150 lineup, featuring more high-strength steel than the outgoing Raptor.

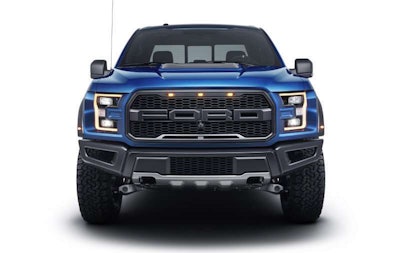

Raptor’s exterior design is forged from high-strength, military-grade, aluminum alloy that helps save more than 500 pounds of weight, Raptor’s chiseled looks are reminiscent of those found in Trophy Trucks – the most powerful and fastest off-road pickups.

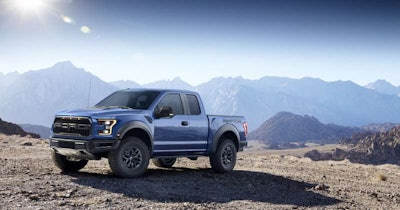

2017 Ford F-150 Raptor is 6 inches wider than the standard F-150 for improved stability off-road.
The all-new Raptor also boasts its first-ever dual exhaust and new 17-inch wheels with next-generation BFGoodrich All-Terrain KO2 tires specifically designed for off-road performance.
The 2016 Raptor is powered by Ford’s new, second-generation 3.5-liter EcoBoost engine that produces more power with greater efficiency than the current 6.2-liter V8, which is rated at 411 horsepower and 434 foot-pounds of torque. The high-output 3.5-liter EcoBoost is a Raptor exclusive in the F-150 lineup and will be paired with an all-new 10-speed transmission for improved efficiency.
An all-new four-wheel-drive, torque-on-demand transfer case, with an advanced, easier-to-use version of off-road mode driver-assist technology, further improves Raptor’s trail performance.
Raptor’s new transfer case, which manages power distribution between the front and rear wheels, combines the best attributes of clutch-driven, on-demand all-wheel drive with durable, mechanical-locking four-wheel drive.
“The new transfer case offers better traction for a greater variety of terrain at low and high speeds – both on-road and off-road,” says Jamal Hameedi, chief engineer, Ford Performance.
Raptor’s off-road mode driving technology has evolved into an all-new Terrain Management System that enables the driver to select modes to optimize driving dynamics to environmental conditions – from snow to mud, sand and more.
The new Raptor features calibration changes to its powertrain, driveline, traction control, ABS and AdvanceTrac stability control for optimal performance. There are six preset modes for the truck depending on terrain and driving conditions:
- Normal mode for everyday driving
- Street mode for higher-performance, on-road driving
- Weather mode for rain, snow or ice
- Mud and sand mode for muddy and sandy trails and terrain
- Baja mode for high-speed desert running
- Rock mode for low-speed rock crawling
An available Torsen front differential increases off-road capability further, Ford says. The system increases grip significantly for the front end of the truck and allows it to pull itself over obstacles and up steep grades – even when traction is split between the front tires.
2017 Ford F-150 RaptorF-150 Raptor suspension comes standard with new FOX Racing Shox with custom internal bypass technology that works to damp and stiffen suspension travel over rough terrain to help prevent the truck from bottoming out.
Front and rear shock canisters have grown from 2.5 inches to 3 inches in diameter for improved performance. They feature more suspension travel than the current Raptor’s 11.2 inches at the front and 12 inches at the rear.
Advanced LED lighting and camera technology contribute to improved visibility on the trail or street – day and night.
Interior upgrades, three color material levels, and paddle shifters to manually shift the 10-speed transmission.
Auxiliary switches to control aftermarket equipment such as lights or an air compressor are mounted out of the driver’s way in the roof of the cab – similar to a fighter plane.
The all-new Raptor will be built at Ford’s Dearborn, Mich. truck plant, and will go on sale fall 2016.
