DL Screening Buckets Made for Base Machines

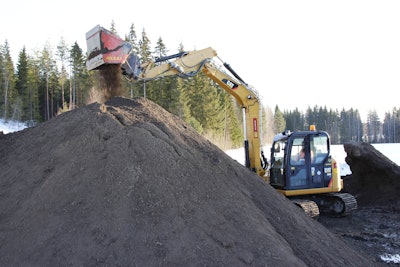

DL Screening buckets from the ALLU Group have been designed for base machines such as mini excavators, small wheel loaders, skid steers and backhoes.

By changing out the screen and hammers, the bucket allows for the changing of screen sizes ranging from 5/8 inch, 1 ¼ inches and 2 inches.

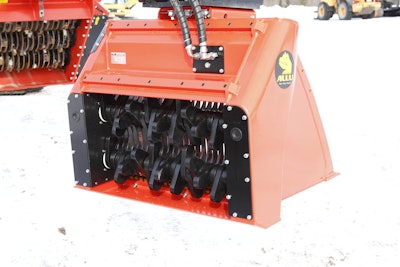

The core of the DL Screening bucket is a top screen where the screening hammers spin between the screen comb, which allows for better production even with wet materials. The bucket doesn’t require a case drain line.

The bucket’s frame was designed and modeled using finite element analysis (FEA) engineering.

Because the material weight is carried by the top screen comb, the drums and bearings have less impact under the loads.

The buckets are available in three models – the DL 2-09, DL 2-12 and DL 2-17.

The DL 2-09 is the smallest of the series and is recommended for mini excavators weighing between 8,000 and 26,000 pounds. The unit is also recommended for small wheel loaders weighing between 4,400 and 17,600 pounds. The bucket is 43 inches wide, 35 inches high and 37 inches deep and weighs 947 pounds.

The DL 2-12 bucket is recommended for compact excavators weighing between 15,400 and 26,000 pounds and for small wheel loaders weighing 6,600 and 17,600 pounds. The bucket is 56 inches wide, 35 inches high and 37 inches deep and weighs 1,190 pounds.

The DL 2-17 bucket is the largest bucket in the series and is recommended for use with compact excavators weighing between 19,800 and 26,000 pounds and for small wheel loaders weighing 8,800 and 17,600 pounds. The bucket is 74 inches wide, 35 inches high and 37 inches deep and weighs 1,532 pounds.
