FAE Intros Three Products at ICUEE 2013

This year, FAE USA presented a variety of products at ICUEE 2013, including:

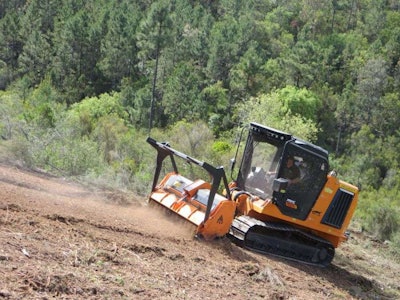

PIC # 1 (PT-175)_Cannes__4[1]PrimeTech PT-175

  • 160 HP – Cummins engine (QSB4.5)
  • Berco LGP under carriage (Berco MF200)
  • Ground pressure 4.25 PSI
  • Weight 19,000 pounds
  • Hydraulic system : Sauer Danfoss
  • Oil flow 61 GPM
  • Mulcher model 140/U 175 (with 110cc variable torque motor)
  • Cutting width 72 inches
  • Cutting capacity 10 inches
  • Winch available

Characteristics: agile and maneuverable, serviceability is a tilt cab and tilt able engine hood, swing out winch), new cab design with flat face windshield and more head room, very low ground pressure, two track options.

Applications: land clearing, vegetation management, utility maintenance, Right-of-ways, forestry and construction works.

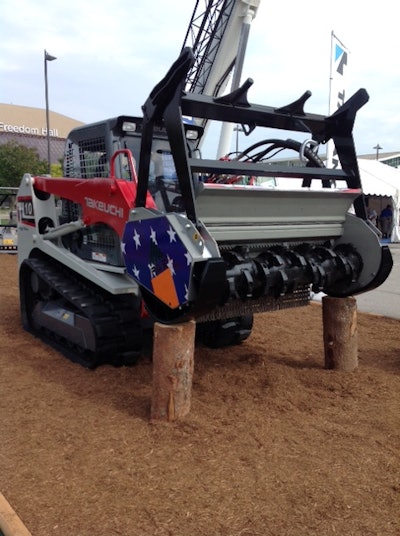

PIC #2 (UML SSL 150 VT High Flow mulcher)UML/SSL 150 VT High-Flow skid steer forestry mulcher

*This mulcher was Mounted on the Takeuchi Skid Steer Loader TL-12

  • Power required 75-120 HP
  • Flow required 34-53 GPM
  • Pressure required 2900-5000 PSI
  • Overall width 74 inches
  • Cutting width 63 inches
  • Cutting capacity 8 inches
  • FAE “smooth rotor system” with double carbide teeth
  • Number of teeth 32 + 2 side cutter teeth
  • Weight 2756 pounds

The machine’s redesign includes:

  • It has a new lower profile
  • It has more Hardox steel to make it more resistant to abrasion
  • It had two sets of Hardox counter knives positioned inside the shell
  • a 110cc variable torque motor for maximum productivity
  • added the guide pins to the guide frame
  • The new mulching door has a chain system. This new system eliminates the door cylinder
  • Pressure gauge is standard
  • Skids are adjustable (3 positions)
  • Guide frame is adjustable (4 positions)

Characteristics: Heavy Duty, high productivity mulcher, easy to service, 3-stage cutting chamber.

Applications: vegetation management, underbrush, utilities maintenance, ROW maintenance, food plots.

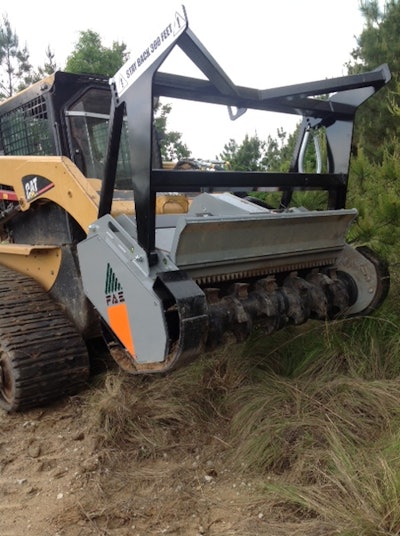

PIC #3 (DML HY 125 STANDARD FLOW MULCHER) untitledDML/SSL 150 standard flow skid steer mulcher

  • Power required 40-90 HP
  • Flow required 13-25 GPM
  • Pressure required 2600-3600 PSI
  • Overall width 69 inches
  • Cutting width 59 inches
  • Weight 1522 pounds
  • Cutting capacity up to 5 inches
  • FAE “smooth rotor system”
  • Reversible teeth (double life)
  • Number of teeth 36 (teeth are reversible)
  • Two sets of Hardox counter knives
  • 3-stage cutting chamber
  • Standard mulching door
  • Standard adjustable guide frame

Characteristics: designed and built for standard flow skid steer loaders.

Applications: vegetation management, underbrush, ROW maintenance, food plots, commercial and residential.
