How to choose the best winch for your pickup

Updated Jul 23, 2018
Pickup-winch-close_BWS0693-1024×681
Synthetic rope winches reduce overall weight on the front suspension without reducing the pulling power.Synthetic rope winches reduce overall weight on the front suspension without reducing the pulling power.

Whether uprooting shrubs and moving boulders into position during the summer or recovering vehicles stuck in mud or snow in the winter, a strong, reliable, bumper-mounted electric winch is a valuable tool in a landscaper’s world.

But like any other tool in a professional’s arsenal, choosing the best winch for the job requires passing up cheap, light-duty models in favor of those that are designed for heavy-duty, professional use.

You also have to match the winch to the vehicle it’ll be mounted on.

Winch accessory kits need to be supplemented with additional chains and straps to handle landscaping and other commercial work truck needs.Winch accessory kits need to be supplemented with additional chains and straps to handle landscaping and other commercial work truck needs.

Winch buyers often overlook the weight of the vehicle as a primary winch-selection criterion, which can be a costly mistake in the field where too little pulling power can be as bad as not having a winch at all.

An ideal work truck winch is one that has a pulling capacity of at least half-again that of the vehicle’s curb weight. Double is even better.

That means selecting a winch with at least 10,000 pounds pull for the typical ½-ton 4×4 crew cab and six-tons of pulling power if it’s for a four-door 4×4 diesel. Overall, the best winch choice for most 4×4 crew cab pickups is a 12,000-pound capacity model.

A dually, hydraulic or an electric winch with at least 15K of pull is an excellent choice.

Overkill? Not when you consider winching a vehicle out of a stuck situation. You have to get its entire weight either moving vertically to clear a rut edge – or rolling forward.

Also, consider a winch loses from 10- to 20-percent of its pull rating (depending on gearing and design) from the inner-most wrap to the outer wrap.

For example, a winch rated at 12,000 pounds capacity may have as little as 2,000 pounds line pull on the outer-most wrap of cable before stalling. That’s why it’s important to check the performance specs when comparing winches.

Quality first
Component quality is just as important. A winch has to be built with the highest quality components – and its internal workings sealed from the elements – when working around mud, dirt, rock, sand and water day in and day out.

Employing snatch blocks is how to reduce the strain on a winch motor while increasing the leverage needed to make heavier pulls easier.Employing snatch blocks is how to reduce the strain on a winch motor while increasing the leverage needed to make heavier pulls easier.

There are a growing number of inexpensive winches on the market that are actually imported from sources overseas where quality control and quality of components aren’t held to as high of standards as many of the true U.S.-made products.

Many of the winch brands have tiers within them that separate the “pro” models from the less expensive “consumer” winches.

Those lower prices are the result of cost-cutting measures on some level and it’s usually the quality of components being used and/or it’s an import. It’s one of those “buyer beware” situations where one gets what they pay for in durability and performance.

Remember, a winch is only as strong as the weakest link in the system. Shop and install accordingly.

Whichever model or brand of winch you choose depends on many factors. But in the end, it all boils down to which one you have the most confidence when it’s time to run out the cable.

Here are 10 winches we favor for use on landscaper’s trucks (click through):

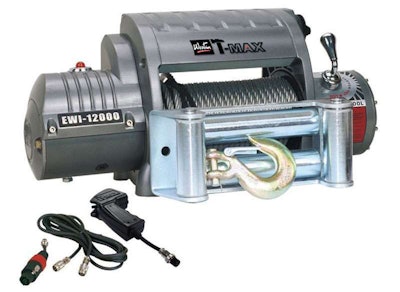

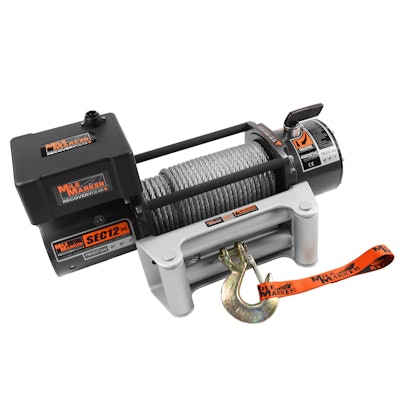

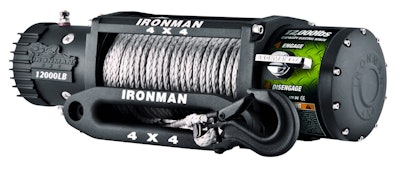

Ironman 4x4 Monster 12000, Ironman’s 4X4 Monster winch is built and tested in Australia. Engineered for heavy-duty use, this 12K-capacity winch is powered by a 6.4 horsepower motor with sealed control box solenoids. Features wireless remote control and ch  Westin T Max Outback, Westin Automotive’s Winch Line Is The Outback Series Lead By The Ewi 12000 It Features A 6 6 Horsepower Motor Driving A Three Stage Planetary Drive With A 256:1 Ratio To Provide Six Tons Of Pulling Power Through 3/8 Inch Wire Rope Mile Marker SEC12 ES, Waterproof and durable, Mile Marker’s 12,000-pound-capacity SEC12 ES (Extreme Service) winch packs heavy-duty power in its compact design. It features submersible solenoids, lots of stainless steel and 19 watertight seals to take on

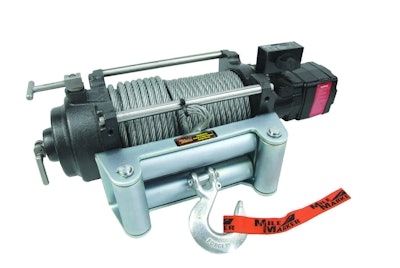

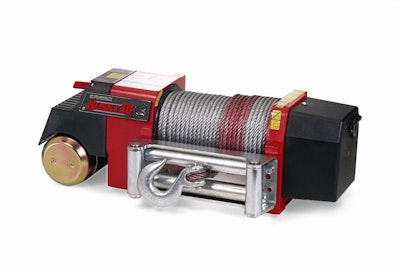

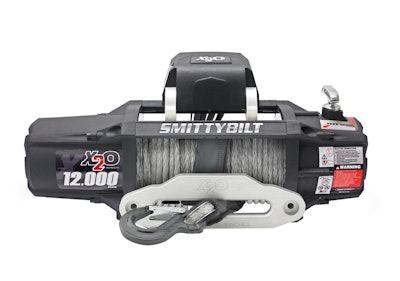

Mile Marker HI12000, A hydraulic winch is great for long, hard pulls without worries of burning up solenoids or draining batteries. Mile Marker’s HI12000 delivers that power running off the pickup’s power-steering pump. Kit comes complete with everything Smittybilt’s X20 Gen2 Winches Come In 10 ,12 ,155 And 17,500 Pound Capacities, And All Use A Waterproof, Series Wound, 6 6 Horsepower Motor Wireless Multi Control Is Standard With A Choice Of Either Synthetic Rope Or Steel Cable Superwinch Husky 10, The Superwinch Husky 10 is a rugged, heavy-duty worm-drive electric winch used by Camel Trophy participants. The 294:1 ratio bullet-proof gearbox provides 100 percent load holding. Waterproof solenoid powers its 4.2 horsepower series

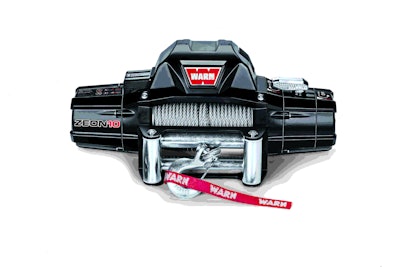

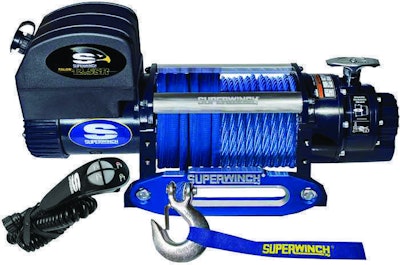

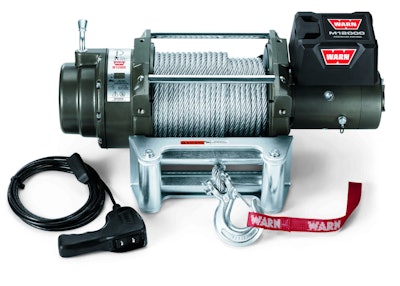

Superwinch Talon 12.5i, Superwinch’s Talon 12.5i and 12.5i SR (synthetic rope) use a fast, strong 148:1 ratio two-stage planetary/two-stage spur-gear drive powered by a 6 horsepower motor to deliver 6.5 tons of line pull. Internal gearbox braking and wate Warn Zeon 10, A strong, low-profile electric that works well on ½-ton work pickups is the 98-pound Warn Zeon 10 winch. Its control pack can be removed and mounted in other locations, and the large diameter winch drum reduces line wear. A 4.6 horsepower se Warn M12000, The low-profile M12000 is one of three models in Warn’s Heavy Weight Winch Series designed for extreme-duty applications. It boasts high-strength carrier plates to handle the geartrain stresses of its 12,000-pound pull. The 4.6 horsepower mot

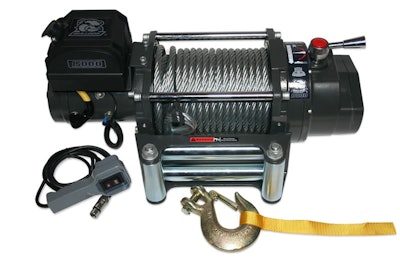

Bulldog 15K HD, The 15k Heavy Duty Truck Winch from Bulldog Winch uses a 7.2 horsepower motor to deliver its recovery power through 92 feet of 15/32-inch wire rope. It has an automatic gear pawl load-holding brake and an amp-overload sensor with LED feedb
