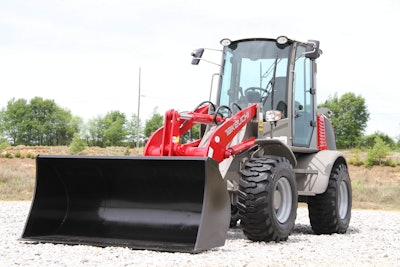

Takeuchi Rolls Out Two Compact Wheel Loaders Designed for Tight Spaces

Img 4609

Takeuchi-US is rolling out two additional compact wheel loaders off its assembly line.

Equipped with EPA Final Tier 4 engines, the TW65 Series 2 and TW80 Series 2 feature a compact design that allows the loaders to move in tight spaces.

The loaders feature reach and dump heights of up to 8 feet, 6 inches.

The TW65 Series 2 features an operating weight of 11,354 pounds, rated operating capacity of 4,050 pounds, tipping load of 9,171 pounds and a bucket breakout force of 11,600 pounds.

With an operating weight of 12,700 pounds, the TW80 Series 2 has a rated operating capacity of 4,445 pounds, tipping load of 12,700 pounds and a bucket breakout force of 13,960 pounds.

Both machines include a turbocharged, water-cooled Deutz engine, which operates at a maximum torque of 192 foot-pounds at 1,800 rpm.

The engine delivers 73 horsepower with a rated engine speed of 2,200 rpm.

The standard travel speed has a high range of 12.4 mph but both machines are available with a high-speed road gear option that delivers a maximum speed of 24.8 mph. The high-speed road gear system also includes a ride control accumulator.

Other features include a multi-function, pilot operated joystick control that now includes a thumb wheel to control auxiliary hydraulics.

For additional attachment versatility, an optional high-flow auxiliary system is available that delivers up to 26 gallons per minute to power the attachment.

Additionally, both cabs on the machines are equipped with air conditioning and heat, adjustable armrest and controller position, as well as storage compartments for the operator.

The automotive-styled interior design also features a frameless door, function switches, inching pedal and pilot controls.
